Close Tolerance Zinc Castings Small to Miniature

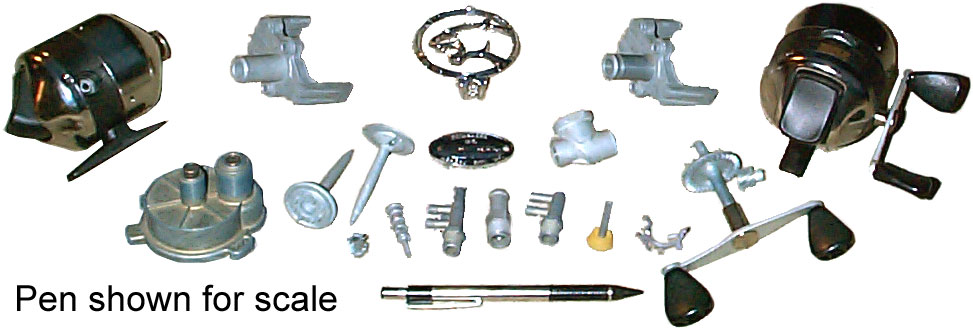

For an enlarged view of the castings, click on the photo.
The castings above were produced for a variety of companies These are just a few of the hundreds of small parts I've helped develop and start up. Castings were produced on Dynacast and Techmire multi-slide and conventional hot chamber machines.
·
Recreational fishing reel components including helical gears. Some features were as thin as 0.030 inch (0.762 mm)
·
Automotive safety component with 0.090 inch (2.286 mm) wire center
·
Hood ornament
·
Cruise control
·
Speedometer housing
·
Chain saw fuel pick-up
·
Fuel safety shut off
·
Automotive vacuum fittings. Dry seal pipe thread "as cast"
·
Camera film advance pawl We were able to solve chronic production problems and train our clients to greatly increase their productivity. Improvements of 25 to 50% were achieved.
Additional Casting examples, stories and case histories
