Close Tolerance Magnesium Castings See full article below the photograph.
Click on above image for a larger view.

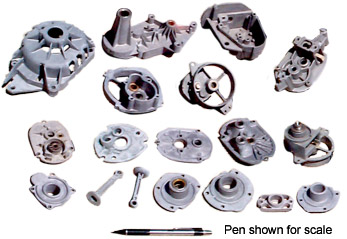

The castings above were produced for a major power tool company.
·
Castings were all produced "net shape", that is, they did not require any machining.
·
Typical "as cast" tolerances were:
o
True position of bearing pockets, 0.0015 inch (0.0375 mm)
o
Cored hole diameters, +/- 0.0005 inch (0.0127 mm)
o
Perpendicularity, +/- 0.0005 inch (0.0127 mm)
·
By casting net shape and eliminating the machining operations, it was possible to significantly reduce cost. For example one of the simpler castings was converted from a competing process and cost was reduced by $1.00. Its mating part was previously heavily machined. It was reduced by $2.00 resulting in a $300,000 annual savings for the pair.
·
Responsibility and involvement:
·
Full time employee, Senior Project Engineer
o
Identified cost reduction opportunities by converting existing components to magnesium
o
Managed tooling design and construction
o
Managed tool maintenance
o
Managed facility renovation to improve the work environment and increase employee morale
o
Evaluated and selected suppliers for die cast dies, trim dies, fixtures, machine repair components, furnaces and other processing equipment.
o
Instituted material flow and processes to reduce manual labor and associated errors. This contributed to reducing headcount by 40%.
o
Created work and inspection instructions that allowed operators to assume responsibility for quality. Eliminated floor inspectors from all shifts. Quality improved from 65 to 99% good parts in 6 months.
o
Created die casting machine rebuild specifications and managed rebuilds.
o
Created new furnace control system and seal system that significantly reduced melt and dross loss.
o
Developed proprietary hot chamber magnesium gooseneck and other shot end components.
o
Managed new tooling sampling and approval process.
o
Identified opportunities to reduce error by standardizing and clarifying specifications on part drawings. This had a worldwide benefit.
o
Trained existing skilled trades in hydraulics, electrical and electronics. This improved machine up time from 75 to 95%.
o
Cut employee absenteeism by 55%.
o
Actual productivity increased by 2.4 times in 24 months. The type of improvements listed above may be possible in your operation. Contact us for an on-site evaluation.
